What are the common reasons for surface roughness in CNC lathing parts?

Oct 06, 2025

Surface roughness is a critical quality parameter in CNC lathing parts, which can significantly impact the functionality, performance, and aesthetics of the final products. As a leading supplier of CNC lathing parts, I have encountered various cases of surface roughness issues in our production process. In this blog, I will share some common reasons for surface roughness in CNC lathing parts based on our practical experience.

1. Tool - related Factors

Tool Wear

One of the most common causes of surface roughness is tool wear. During the CNC lathing process, the cutting tool is in continuous contact with the workpiece, and the cutting edge gradually wears out. As the tool wears, the cutting forces increase, and the tool's ability to cut smoothly deteriorates. This leads to irregularities on the machined surface, resulting in increased surface roughness.

For example, if a carbide turning tool is used for a long time without proper re - sharpening or replacement, the cutting edge will become dull. A dull tool will produce a plowing effect on the workpiece surface, causing grooves and ridges. To mitigate this issue, regular tool inspection and replacement are necessary. We usually follow a strict tool management system in our production, where we monitor the tool life based on the cutting time and the number of parts machined.

Tool Geometry

The geometry of the cutting tool also plays a crucial role in determining the surface finish. Parameters such as the rake angle, clearance angle, and nose radius have a direct impact on the cutting process. A negative rake angle can increase the cutting forces, which may lead to vibrations and poor surface finish. On the other hand, an appropriate nose radius can reduce the feed marks on the machined surface.

In our production, we carefully select the tool geometry according to the workpiece material and the required surface finish. For example, when machining soft materials like aluminum, we often use tools with a relatively large positive rake angle to reduce the cutting forces and improve the surface finish. Meanwhile, for hard materials like stainless steel, a smaller rake angle may be more suitable to maintain the tool's strength.

2. Workpiece - related Factors

Material Hardness and Inhomogeneity

The hardness and inhomogeneity of the workpiece material can cause surface roughness. If the workpiece material has inconsistent hardness, the cutting tool will experience different cutting forces during the machining process. This can lead to uneven material removal and result in a rough surface.

For instance, in cast iron workpieces, there may be hard spots or porosity. When the cutting tool encounters these hard spots, it may cause sudden changes in the cutting forces, leading to chatter and rough surfaces. To address this issue, we may perform pre - heat treatment on the workpiece to improve its hardness uniformity. Additionally, we use appropriate cutting parameters to adapt to the material properties.

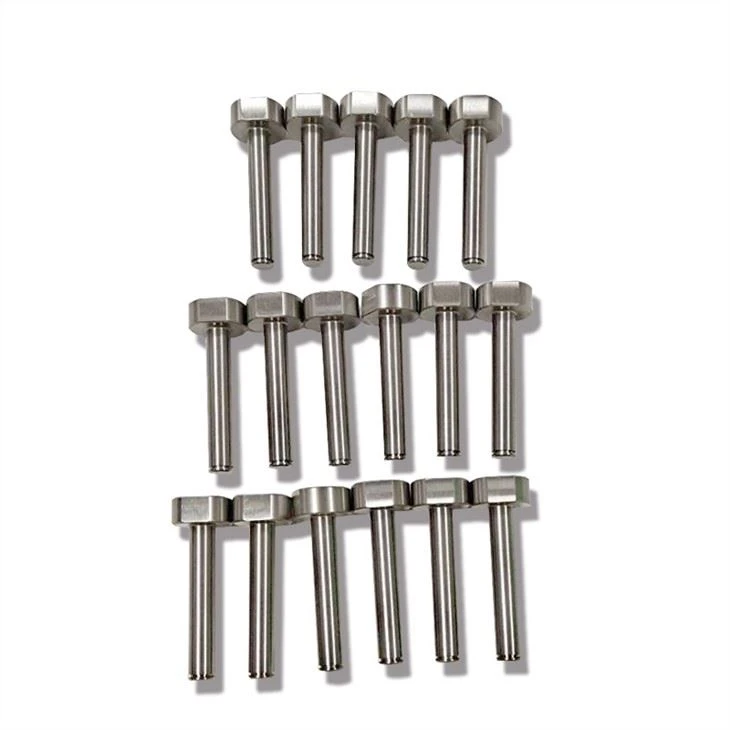

CNC precision components manufacturingCNC lathing OEM manufacturer

Workpiece Fixation

Proper workpiece fixation is essential for achieving a good surface finish. If the workpiece is not firmly clamped, it may vibrate during the lathing process. These vibrations can cause irregular cutting and result in surface roughness.

In our workshop, we use high - quality fixtures to ensure the stable fixation of the workpiece. For different types of workpieces, we design specific fixtures to meet their unique requirements. For example, for thin - walled workpieces, we use soft jaws or special clamping devices to prevent deformation and vibration.

3. Machine - related Factors

Machine Vibration

Machine vibration is a major contributor to surface roughness in CNC lathing. Vibration can be caused by various factors, such as unbalanced rotating parts, loose machine components, or improper spindle speed. When the machine vibrates, the cutting tool will move irregularly, resulting in uneven cutting and a rough surface.

To reduce machine vibration, we regularly maintain our CNC lathes. We check the balance of the spindle and other rotating parts, and tighten any loose components. Additionally, we optimize the spindle speed and feed rate to avoid resonance frequencies. For example, we use vibration analysis tools to identify the critical frequencies of the machine and adjust the cutting parameters accordingly.

Feed Rate and Spindle Speed

The feed rate and spindle speed are two important cutting parameters that affect the surface finish. A high feed rate can increase the material removal rate but may also lead to larger feed marks on the machined surface. On the other hand, an inappropriate spindle speed can cause chatter and poor surface finish.

In our production, we use a combination of theoretical calculations and practical tests to determine the optimal feed rate and spindle speed. For different workpiece materials and cutting tools, we have established a set of recommended cutting parameters. For example, when machining titanium alloys, we usually use a lower feed rate and a medium spindle speed to achieve a good surface finish.

4. Cutting Fluid - related Factors

Inadequate Cutting Fluid

Cutting fluid plays a crucial role in the CNC lathing process. It can cool the cutting tool and the workpiece, reduce friction, and flush away the chips. If the cutting fluid is not used properly or is of poor quality, it can lead to increased cutting temperatures and friction, which in turn can cause surface roughness.

In our workshop, we use high - quality water - soluble cutting fluids. We regularly monitor the concentration and cleanliness of the cutting fluid. If the cutting fluid concentration is too low, it may not provide sufficient cooling and lubrication. On the other hand, if the cutting fluid is contaminated with chips or debris, it can scratch the machined surface.

5. Environmental Factors

Temperature and Humidity

The temperature and humidity in the machining environment can also affect the surface finish of CNC lathing parts. High temperatures can cause thermal expansion of the workpiece and the machine components, leading to dimensional changes and surface roughness. Humidity can cause corrosion on the workpiece and the cutting tool, which may also affect the surface quality.

We maintain a stable temperature and humidity environment in our workshop. We use air - conditioning and dehumidification systems to control the environmental conditions. This helps to ensure the stability of the machining process and the quality of the machined parts.

As a reliable supplier of OEM CNC Machining Services, we are committed to providing high - quality CNC lathing OEM and CNC precision components. By understanding the common reasons for surface roughness in CNC lathing parts, we can take effective measures to improve the surface finish and meet the strict quality requirements of our customers.

If you are interested in our products or have any questions about CNC lathing parts, please feel free to contact us for procurement and negotiation. We look forward to establishing long - term partnerships with you.

References

  • Trent, E. M., & Wright, P. K. (2000). Metal Cutting. Butterworth - Heinemann.
  • Kalpakjian, S., & Schmid, S. R. (2013). Manufacturing Engineering and Technology. Pearson.
  • Dornfeld, D. A., Minis, I., & Takeuchi, Y. (2007). Handbook of Machining with Grinding Wheels. CRC Press.
