Hey there! As a supplier of CNC Milling Parts, I've dealt with all sorts of challenges in the machining process. One of the most common headaches is handling the chips generated during CNC milling. In this blog, I'll share some tips and tricks on how to manage these chips effectively.
First off, let's understand why dealing with chips is so important. During CNC milling, the cutting tool removes material from the workpiece, creating chips. If these chips aren't managed properly, they can cause a whole bunch of problems. They can damage the cutting tool, affect the surface finish of the part, and even jam the machine. So, it's crucial to have a good strategy in place.
1. Chip Breaking
One of the first steps in handling chips is to break them into smaller pieces. Long, continuous chips are a nightmare to deal with as they can get tangled around the cutting tool and the workpiece. There are a few ways to achieve chip breaking.
- Using the Right Cutting Tool: Some cutting tools are designed specifically for chip breaking. For example, tools with special geometries like serrated edges or chip breakers can help break the chips into more manageable sizes. When choosing a cutting tool, make sure to consider the material you're machining and the desired chip size.
- Adjusting Cutting Parameters: The cutting speed, feed rate, and depth of cut also play a significant role in chip formation. By adjusting these parameters, you can control the shape and size of the chips. For instance, increasing the feed rate can sometimes lead to shorter chips. However, you need to find the right balance as changing these parameters too much can affect the quality of the machined part.
2. Chip Removal
Once the chips are broken into smaller pieces, the next step is to remove them from the machining area. There are several methods for chip removal.
- Coolant Systems: Coolant not only helps in reducing heat during the machining process but also plays a crucial role in chip removal. A well-designed coolant system can flush the chips away from the cutting area. There are different types of coolant systems, such as flood coolant, mist coolant, and through-tool coolant. Flood coolant is the most common type, where a large volume of coolant is sprayed onto the cutting area. Mist coolant, on the other hand, uses a fine mist of coolant, which can be more environmentally friendly. Through-tool coolant delivers the coolant directly through the cutting tool, providing better cooling and chip removal at the cutting edge.
- Chip Conveyors: Chip conveyors are mechanical devices that are used to transport the chips away from the machining area. There are different types of chip conveyors, including belt conveyors, chain conveyors, and screw conveyors. Belt conveyors are suitable for handling large volumes of chips, while screw conveyors are more compact and can be used in tight spaces. Chain conveyors are known for their durability and can handle heavy chips.
3. Chip Collection and Disposal
After the chips are removed from the machining area, they need to be collected and disposed of properly.
- Chip Bins: Chip bins are used to collect the chips. Make sure to choose a chip bin that is the right size for your machining operation. It should be large enough to hold the chips but not so large that it takes up too much space. Also, consider the material of the chip bin. Metal chip bins are more durable, but plastic chip bins can be lighter and easier to handle.

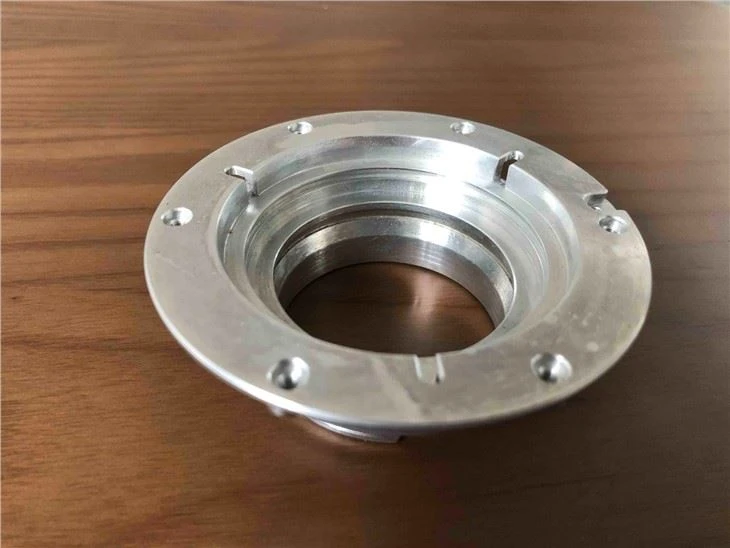

- Recycling: Many types of chips can be recycled, which is not only good for the environment but also can save you money. For example, Aluminum Cnc Machining Parts chips can be recycled into new aluminum products. Make sure to separate the chips by material type before recycling to ensure the best quality of the recycled material.
4. Special Considerations for Different Materials
Different materials generate different types of chips, and you need to adjust your chip handling strategy accordingly.
- Aluminum: Aluminum chips are usually soft and can be prone to clogging. Using a coolant with good lubrication properties can help prevent the chips from sticking to the cutting tool. Also, make sure to clean the chip removal system regularly to avoid blockages.
- Steel: Steel chips are harder and can be more abrasive. They can cause more wear on the cutting tool and the chip removal system. Using a cutting tool with a high hardness and a coolant with good anti-wear properties can help. Additionally, make sure to use a chip conveyor that can handle the heavy and abrasive chips.
- Plastics: Plastic chips can be very light and can float in the coolant. This can make them difficult to remove. Using a mist coolant system or a vacuum chip removal system can be more effective for plastic machining.
5. Maintenance of Chip Handling Equipment
To ensure the effectiveness of your chip handling system, regular maintenance is essential.
- Cleaning: Clean the chip removal system, including the coolant tank, chip conveyor, and cutting tool, regularly. This will prevent the buildup of chips and debris, which can affect the performance of the equipment.
- Inspection: Inspect the chip handling equipment for any signs of wear or damage. Replace any worn-out parts immediately to avoid breakdowns.
- Lubrication: If your chip handling equipment has moving parts, make sure to lubricate them regularly to ensure smooth operation.
In conclusion, handling the chips generated during CNC milling is a crucial part of the machining process. By using the right cutting tools, adjusting the cutting parameters, implementing an effective chip removal system, and properly collecting and disposing of the chips, you can improve the efficiency and quality of your machining operations. Whether you're working on Liquid Cooling Plate or Prototype Cnc Machining, these tips can help you manage the chips effectively.
If you're in the market for high-quality CNC Milling Parts and want to discuss your specific requirements, feel free to reach out. We're here to provide you with the best solutions and products.
